Newly designed pedestrian access speed gate IP54 OEM/ODM
Millisecond-level Response, Unimpeded Passage
High-speed Drive Technology: Fast opening and closing in 0.8 seconds, with a hourly passenger throughput of over 1,200 people, perfectly suitable for ultra-peak passenger flow scenarios such as subways, airports, and convention centers.
Intelligent Speed Control: Automatically adjusts the swing arm speed according to passenger flow, with quiet and slow movement during off-peak hours and fast passage during peak hours.
Super Safety Protection
Triple Anti-pinch Protection: High-sensitivity infrared matrix + mechanical pressure sensing + current detection, with immediate rebound when encountering obstacles, force ≤8N, and safety level meeting CE certification standards.
Dynamic Anti-tailgating: Infrared accurately identifies illegal intrusion and reverse gate rushing, with an alarm response time <0.3 seconds.
Anti-riot Reinforced Structure: 10mm tempered glass swing arm + stainless steel bearings, capable of withstanding 50kg impact force, and IP54 protection to withstand extreme outdoor environments.
Intelligent Interconnection for All Scenarios
Touchless Passage Experience: Supports new-generation biometric technologies such as face swiping and touchless payment, improving passage efficiency by 60%.
Multi-system Integration: Seamlessly connects to access control and attendance systems, ticketing systems, and public security big data platforms, meeting smart city-level management needs.
| Technical parameter |
| Product number | CW495 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor type | 40W Brushless DC |
| Rated power | 100W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30-40 people/minute |
| Infrared beam | 6 pairs |
| Number of trouble-free runs | 4 million times |
| Average life span | 5 million times |
| Channel width | 600~1000mm |
| Swing arm material | 10mm acrylic glass |

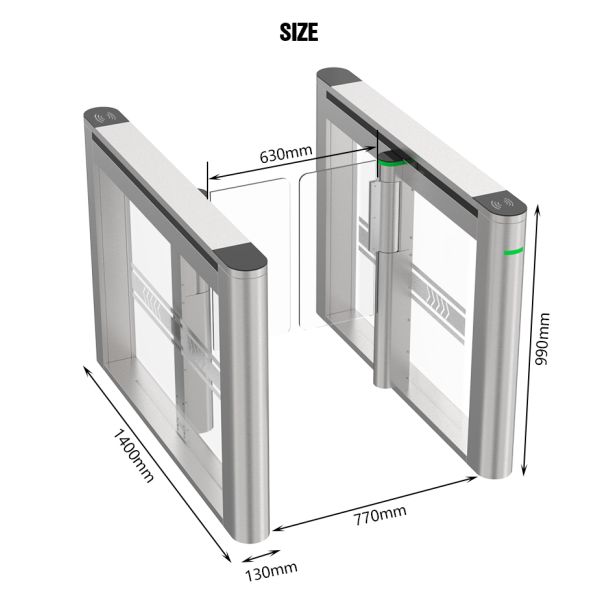

| Product Size | 1400*130*990mm |
| Channel frame | 1.2 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
